D1SPEC キャンバーアーム用ピロ(86/GR86用)
2021/07/10 発売開始

D1SPEC キャンバーアーム用ピロ(86/GR86用)

7,150円 ~ 14,300円 税込
商品コード: DMPI86RCA1 ~ DMPI86RCASET
JANコード: 4570130877217 ~ 4570130877224
関連カテゴリ
数量
カートに追加しました。
お買い物を続ける カートへ進む

純正ゴムブッシュではケースとゴムが固定されている為、『ネジレ』・『たわみ』・『つぶれ』により支点位置も安定せず、可動範囲も制限されてしまい、常にアライメントが変動している状態です。また常にゴムの反発力が生じている為に、サスペンションの動きに大きな影響を与え続けた状態で走り続けています。このゴムブッシュをピロにする事で、『ネジレ』・『たわみ』・『つぶれ』が無くなり、常に支点の位置は一定状態になり、アライメント変化もなくなります。サスペンションも負荷がかかる事なく、スムーズに動き、ドリフト走行中の挙動変化をほぼ無くし、トラクション不足を感じていたシーンでも本来の性能を引き出す事が可能になります。

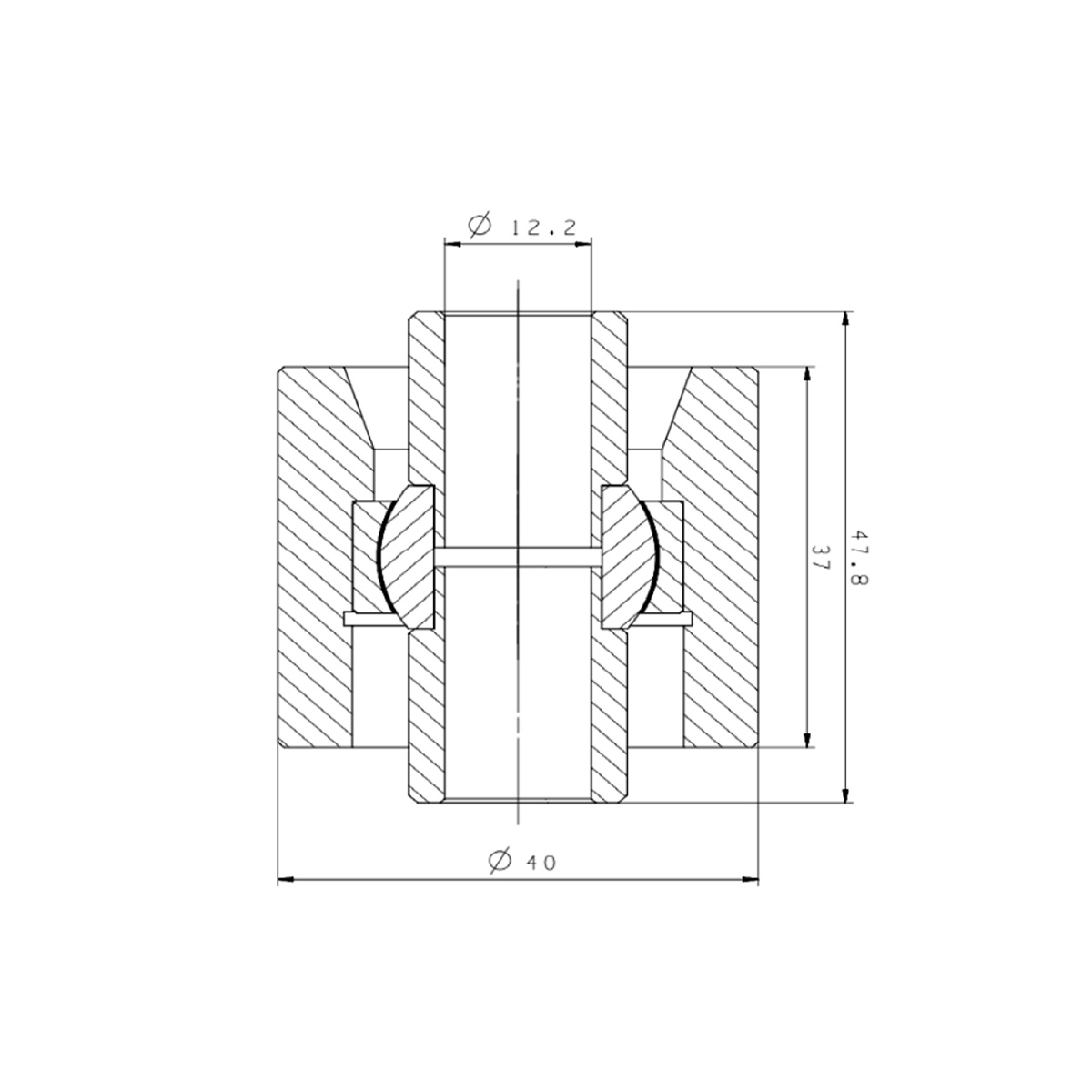

■仕様

















ピロ外径 40Ф
ピロ内径 12.2Ф
ピロ長さ 37mm

■材質













ピロ SCM435(クロモリ鋼)
カラー SCM435(クロモリ鋼)


■適合車種













86/GR86 ZN6/ZN8
BRZ ZC6/ZD8

※取付にはプレス機による圧入作業が必要ですのでプロショップにご依頼ください。

With genuine rubber bushings, the case and rubber are fixed, so the fulcrum position is unstable due to "twisting", "warping", and "crushing", and the range of movement is limited, and the alignment is constantly fluctuating. In addition, the rubber is constantly generating repulsive force, which continues to have a large impact on the movement of the suspension as you continue to drive. By changing this rubber bushing to a pillow ball, there is no "twisting", "warping", or "crushing", the fulcrum position is always constant, and there is no change in alignment. The suspension also moves smoothly without any load, and there is almost no change in behavior during drifting, making it possible to bring out the original performance even in situations where you feel a lack of traction.


■Specifications

















pilot outer diameter 40Ф
Pillow inner diameter 12.2Ф
Pillow length 37mm

■Material












Piro SCM435 (Chromoly steel)
Color SCM435 (chrome molybdenum steel)


■Compatible models













86/GR86 ZN6/ZN8
BRZ ZC6/ZD8

※Installation requires pressing with a press, so please ask a professional shop.
